The enclosure has two pieces, the top part and the bottom part.

We built our enclosures at LMB/Heeger, Inc, which does excellent job with very reasonable price. If you want to order from this company, you do not  even need to send in our technical drawings. Just refer to them the model of "USC modified 778". If you send them email, please also CC Wei Ye ([email protected]), since the company may ask the approval from the designer.

To build a complete enclosure, you also need some accessories. We ordered them from Bisco Industries, Inc. The following is a list of parts for ONE enclosure.

Part Number	Manufacturer	Description	Quantity	Assembly
NC120302A	Keystone	2-56 Hex standoffs L:3/4 OD:1/8	2	Daughter board
NC120342A	Keystone	2-56 Hex standoffs L:1 OD:1/8	2	Main board
1797A	Keystone	2-56 Hex standoffs L:.187 OD:.156	2	Mounting the Mote
SJ-5012	3M	Bumpon (black)	4	Bottom of enclosure
2-56X1/8PAN PH SS		Machine screws	4	Mounting the Mote
2-56X1/4PAN PH SS		Machine screws	8	Main, daughter boards
5710-260-10	Seastrom	#2 flat washer thinkness 0.01	4	Main, daughter boards
5850-9	Seastrom	#2 helical spring lock washer	4	Enclosure bottom

All of the parts have quantity discounts, and some of them have limits on the minimum quantity. You may want to call a representative at Bisco Industries, Inc, since some of the parts may not be shown on their website.

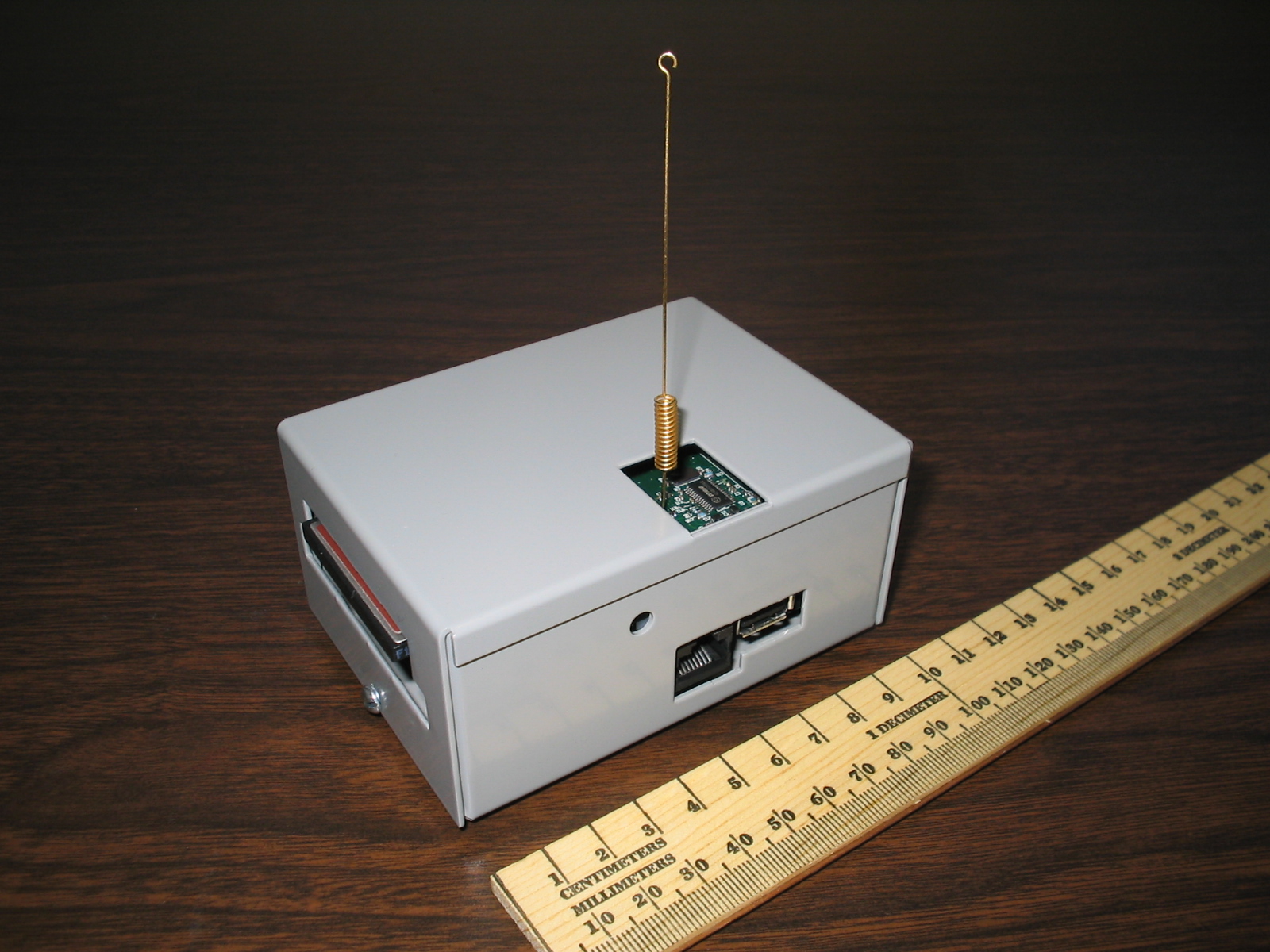

These are detailed instructions and pictures on how to assemble the Stargate with the enclosure.
